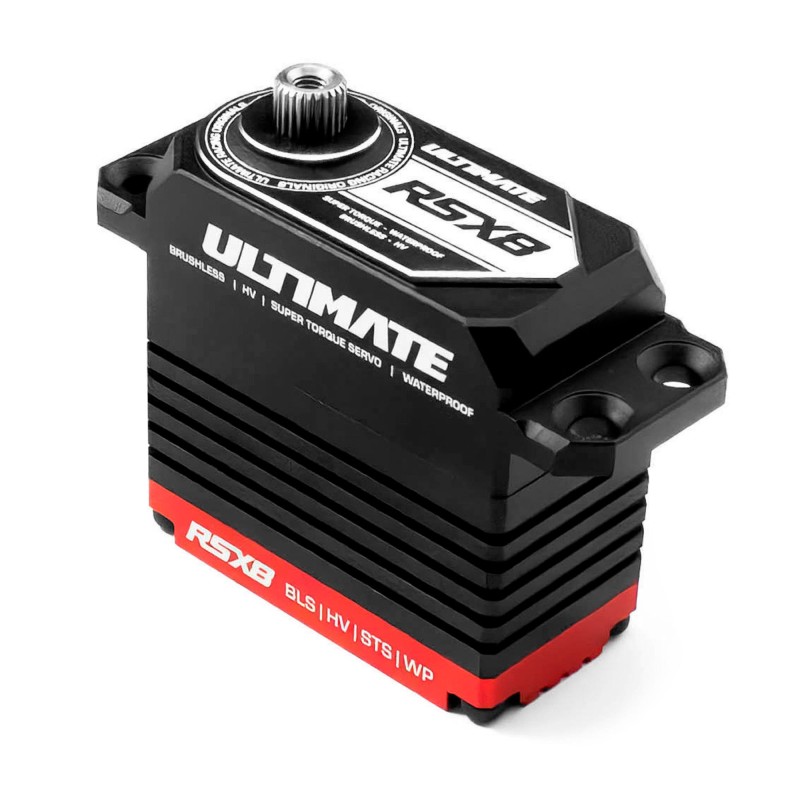

Ultimate RSX8 HV Brushless Servo

Ultimate RSX8 Brushless Servo: Precision and Reliability for 1/8 Scale

The RSX8 HV Brushless servo from Ultimate Racing offers the perfect combination of power, speed, and durability, designed for 1/8 competition cars. This digital servo is suitable for both steering and throttle/brake, crafted to meet the demands of the most challenging tracks. Its exceptional performance makes it a top choice for the most demanding drivers.

Performance That Makes a Difference:

• Speed at 7.4V: 0.08 s/60° for ultra-fast response.
• Torque at 7.4V: 35 kg.cm ensuring total control in every maneuver.
• Thermal Efficiency: Anodized housing with enhanced heat dissipation.
• Sealed System: Advanced moisture protection.
• Vibration Reduction: Rubber mounts stabilize the servo without compromising position.

Technical Innovations

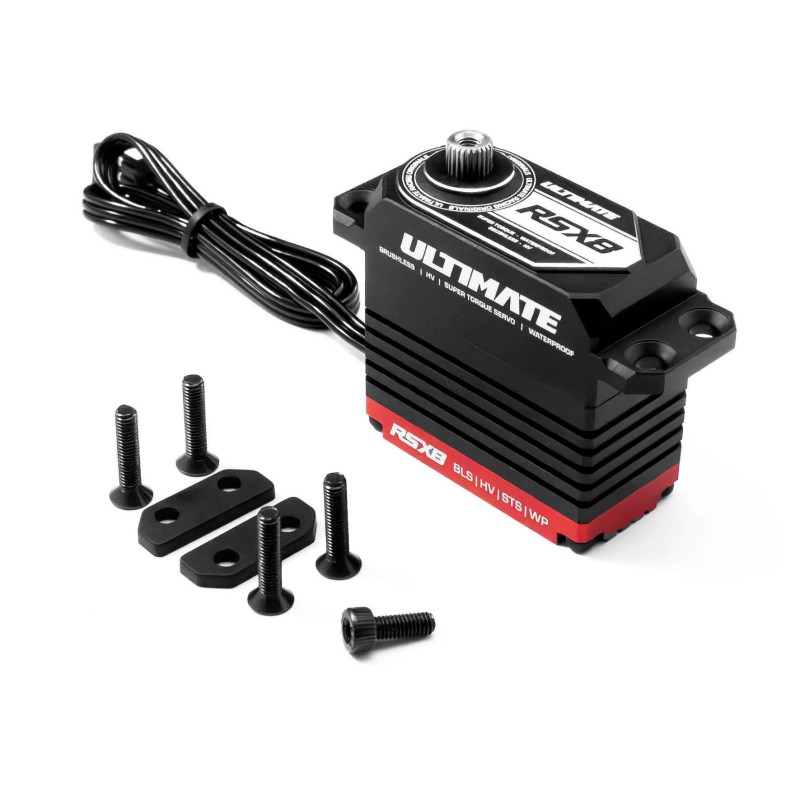

The Ultimate RSX8 servo includes unique features like an internal O-ring to prevent moisture ingress, and recessed mounts that eliminate the need for washers, ensuring a simpler and more secure installation. It also includes M3x14mm tapered screws and a screw for the servo arm compatible with Ultimate Racing arms.

Technical Specifications

• Speed:
  • 6.0V: 0.10 s/60°
  • 7.4V: 0.08 s/60°
  • 8.4V: 0.075 s/60°
• Torque:
  • 6.0V: 31 kg.cm
  • 7.4V: 35 kg.cm
  • 8.4V: 37 kg.cm
• Weight: 81 g.
• Dimensions: 40x20x38 mm.
• Motor: Brushless.
• Gears: Titanium and steel.
• Voltage: 6.0-8.4V.
• Cable: JR connector, 300 mm length.
• Operating frequency: 1520µs/330hz.

The Trusted Brand: Ultimate Racing

With a legacy of innovation in RC racing, Ultimate Racing develops products tailored to the needs of the most demanding drivers. This RSX8 HV Brushless servo is not just another component; it’s a key ally in every race.
