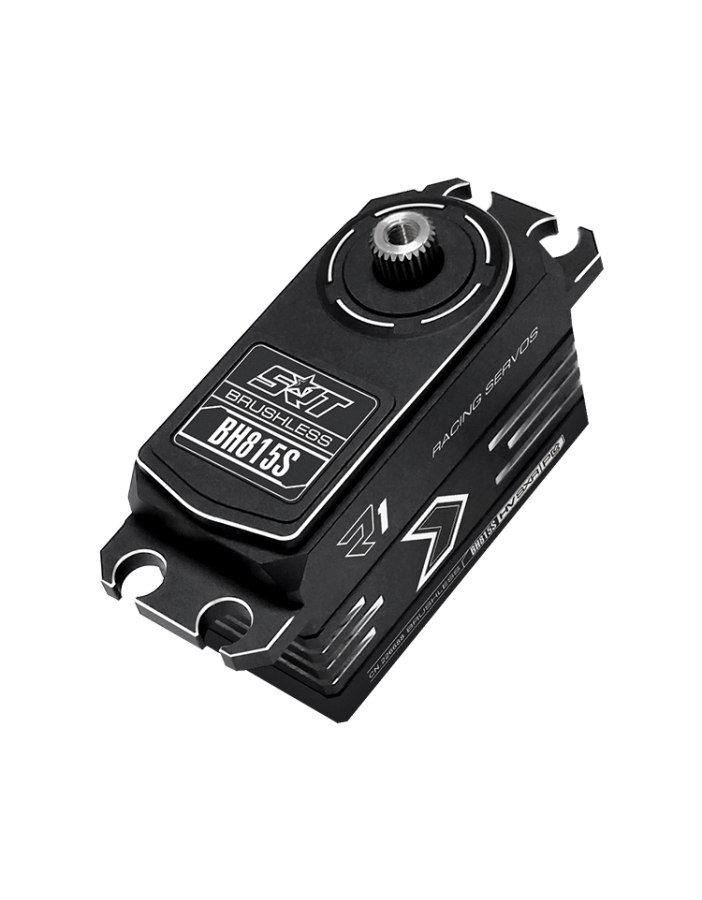

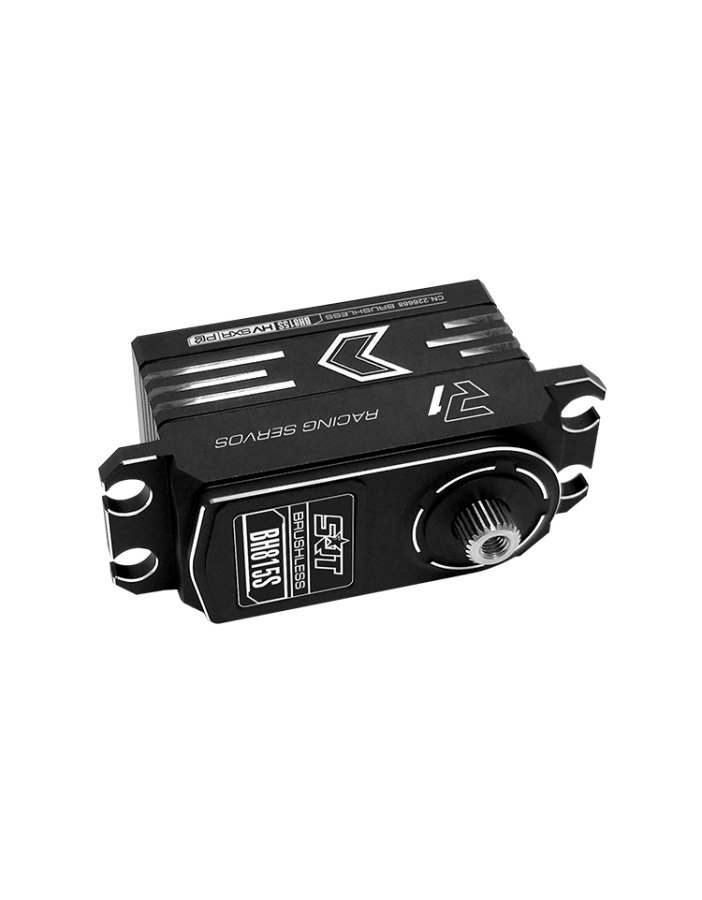

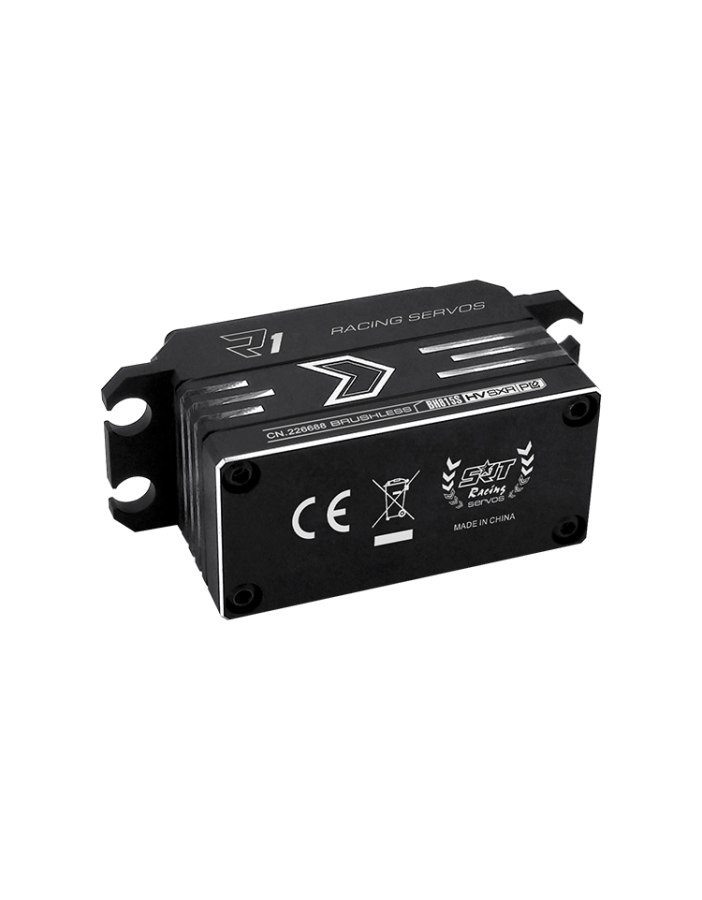

SRT BH815S 1/10 On-Road HV Brushless Servo

€118.64
Tax included

Out-of-Stock
  • Política de seguridad
    Política de seguridad (editar con el módulo de Información de seguridad y confianza para el cliente)
  • Política de entrega
    Política de entrega (editar con el módulo de Información de seguridad y confianza para el cliente)
  • Política de devolución
    Política de devolución (editar con el módulo de Información de seguridad y confianza para el cliente)
Description

KEY FEATURES

  • Unique Mechanic Design

  • incredible efficiency and low power consumption

  • Standard dimension make it perfect for vehicles that can benefit from a high quality servo

  • CNC Machined aluminum case for exceptional cooling

  • SSR mode compatible

  • 2 μsec Dead Band Superior Holding Torque

  • 1-Year Limited Warranty

Item no 6.0V 7.4V 8.4V Gear Motor Case Dimension
(mm)
Weight
(g)
Speed:
sec/60°
Torque:
kg-cm/oz-in
Speed:
sec/60°
Torque:
kg-cm/oz-in
Speed:
sec/60°
Torque:
kg-cm/oz-in
BH815S 0.065 10.0/138.8 0.055 13.0/180.5 0.050 15.0/208.3 Titanium & Alu Brushless CNC 41.0*20.0*26.4 52.0


Application :
1/10 Electric/ Car 1/10 Nitro/ Car  Off-road  On-road

PRODUCT SPECIFICATIONS

  • Type: Digital

  • Bearing: Dual

  • Motor Type: Brushless

  • Gear Type: Metal

  • Gear Material: Titanium & Alu

  • control system: pulse width control

  • working frequence: 1520μs / 330hz

  • operating voltage: dc6.0-8.4v

  • operating temperature range: -10 to + 60 degree

  • operating speed (6.0v): 0.065 sec/60 degrees at no load

  • operating speed (7.4v): 0.055 sec/60 degrees at no load

  • operating speed (8.4v): 0.050 sec/60 degrees at no load

  • stall torque (6.0v): 10.0kg.cm (138.8 oz/in)

  • stall torque (7.4v): 13.0kg.cm (180.5 oz/in)

  • stall torque (8.4v): 15.0kg.cm (208.3 oz/in)

  • potentiometer drive: direct drive

  • dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in

  • weight: 52.0g (1.83 oz)

  • connector wire length: jr 80 mm

Product Details
SRT
SRT-BH815S

Data sheet

TypeServo

Specific References

EAN136969008001553
MPNBH815S
