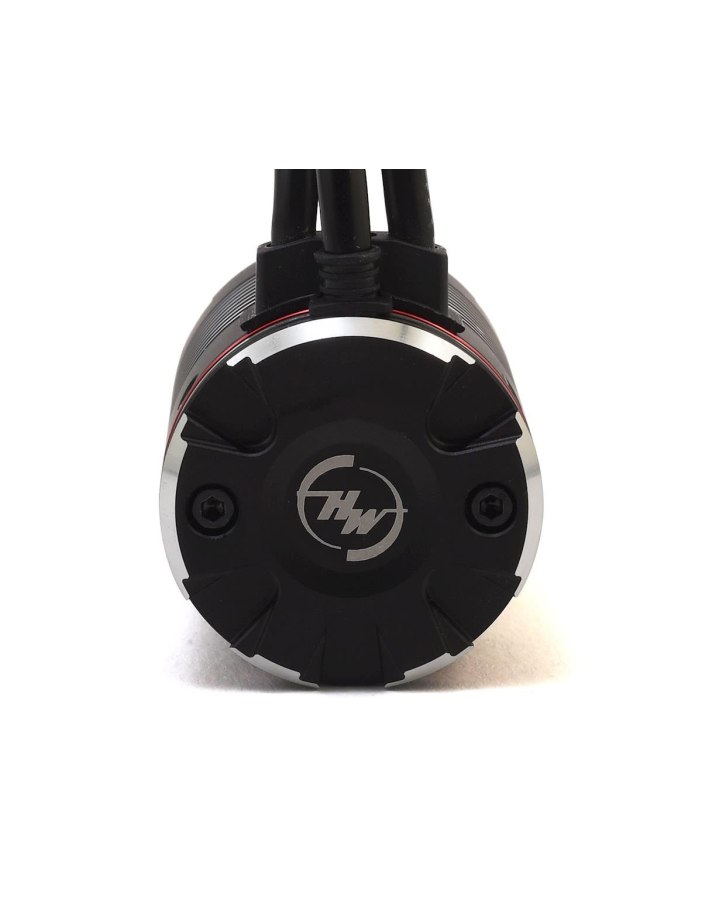

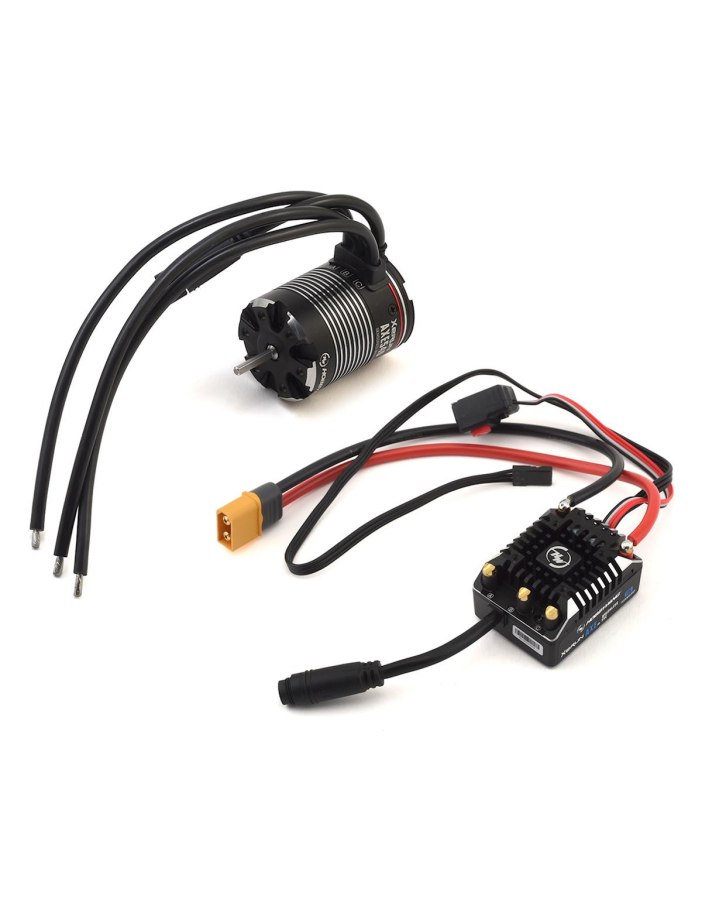

Hobbywing Xerun Axe 540-1800Kv Foc Sensored Brushless Combo

HOBBYWING XERUN AXE 540-1800KV FOC SENSORED B/LESS V1.1 COMBO

Features

• Word's First FOC brushless system for Rock Crawler, Field-Oriented Control for Super Linearity, High Torque and Extreme Silence.
• Polarity Protection:  Yes, it is not a typo! No more "oops" moments.
• The chip-type magnetic encoder inside the motor guarantees consistency between three phases’ signals and always outputs the pure and precise signals indicating the rotor position.
• The waterproof and dust-proof design (*IP67 standards) allows the AXE brushless power system to be used in all weather & track conditions without any issue of damage caused to the system from water or dust. Damage to the vehicle caused by water, mud, or conditions should be monitored closely when running in muddy, wet, or adverse conditions.
• Intelligent torque output and  speed closed-loop control for easy control, and consistent motor RPM under all loads.
• The adjustable drag brake and drag brake rate control with the maximum drag brake of up to 200% (that’s near twice the drag brake of standard brushless power systems) can provide
• unprecedented parking capacity on slopes, with no jerky stops.
• The innovative built-in Bluetooth connectivity. allows users to read ESC data or update ESC firmware via a smartphone (installed with the HW LINK app).
• The motor with 4 poles and 12 magnets, featuring Hobbywing’s “staggered pole” patent has zero cogging effect and torque ripple. It can work smoothly at low speeds. This greatly improves
• the maneuverability of rock crawlers at low speeds.
• The new sensor harness, which features the plug-and-screw design, has a silicone O ring inside. The new design and O ring not only provides a firm connection between motor and ESC but solves the “waterproof” challenge for sensor ports.
• Advanced and secure electronic switch features a waterproof, dust-proof and shock-resistant design.
• Multiple protections: low-voltage cutoff, thermal, fail-safe (throttle signal loss), motor lock-up, and overcurrent.

Important: Xerun AXE series is a close-system: Due to its advanced technology, HOBBYWING Xerun AXE ESC works exclusively with Xerun AXE brushless motor.
