The creation of this product arose from the desire to finally have a charger as versatile, accurate and powerful as a SkyRC hobby charger but tailored to a sweet battery tray for cylindrical single cell batteries; no more hassle with battery holders, fiddly wiring, clamps or similar DIY solutions.
- Multi-Chemistry Support
- 7+ battery chemistries
- Support 42+ battery sizes
Powerful and Accurate
NiMH / NiCd / NiZn / Eneloop:
- Charge current: Max. 3A (x4 slots)
- Discharge current: Max. 2A (x4 slots)
- Internal Accuracy**
- (calibrated w/ accurate calibration source)
- Voltage: < |±2mV|
- Current: < |±2mA|
Li-Ion / LiLo4.35 / LiFe-P04:
- Charge current: Max. 3A (x4 slots)
- Discharge current: Max. 2A (x1 slot)
- Max. 1A (x4 slots)
- Display Resolution
- Voltage: 0.01V
- Current: 0.01A

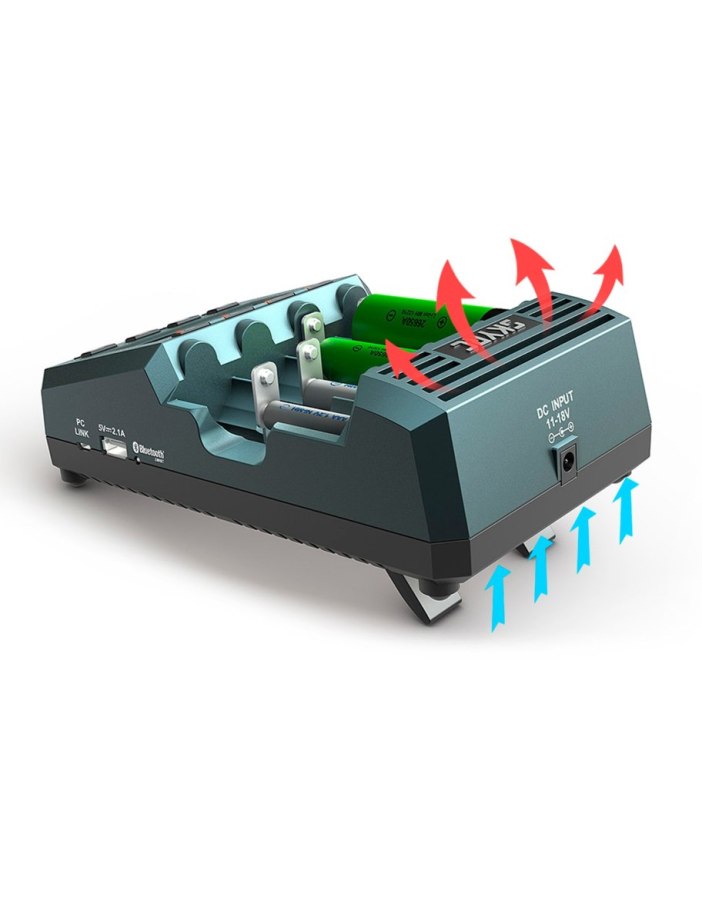

Effective Cooling: The built-in aluminum cooler effectively dissipates heat generated in the inside of the charger to the environment, even at slow fan speed.

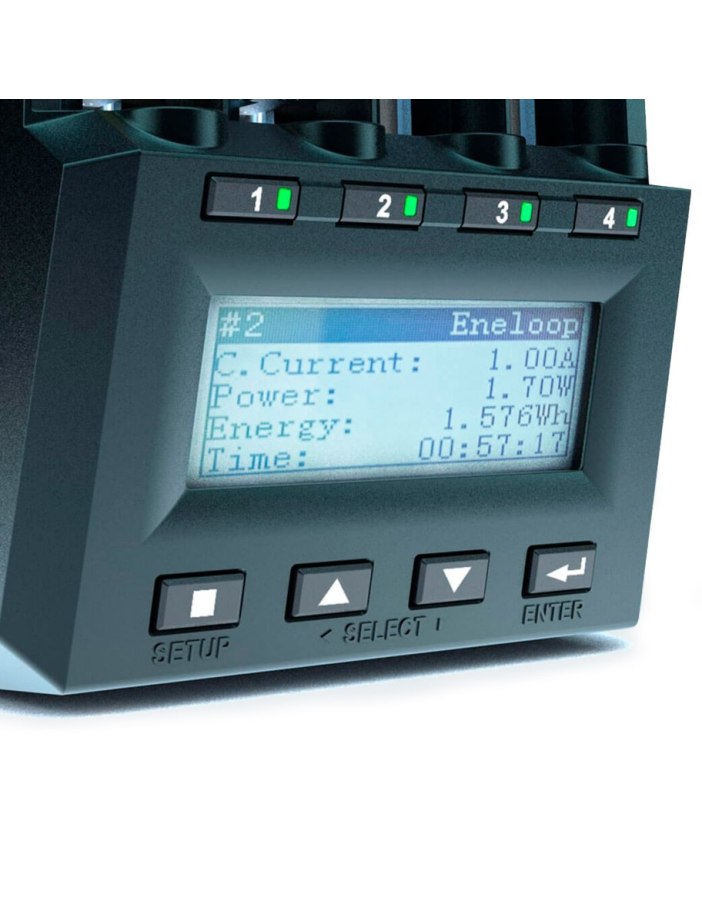

Compact Display: The 128x64 pixels screen shows 5 different views during operation, see above a picture of Total Overview (TOV).
Rich User Interface: Eight Buttons for easy programming and operation. Four Slot Number Buttons (SNB) help to address the different slots. The other four buttons are for programming and operation.
Easy Programmability: In Simple and Advanced UI modes, the charger operates off 30 user-defined operation profiles. The programs can be called up and run with few clicks, very conveniently.
APP Control: BLE 4.0 technique enables user to operate the charger and view real time data and graphs via mobile application.Secure Stand
Rubber feet and strong tilt stand elements provide a firm stand. Tilted position enhances viewing angle and cooling air flow at the bottom side.
PC Control: User can use PC Link software to control the charger, view real time data with graphs, and also update the charger firmware through it.
Specs:

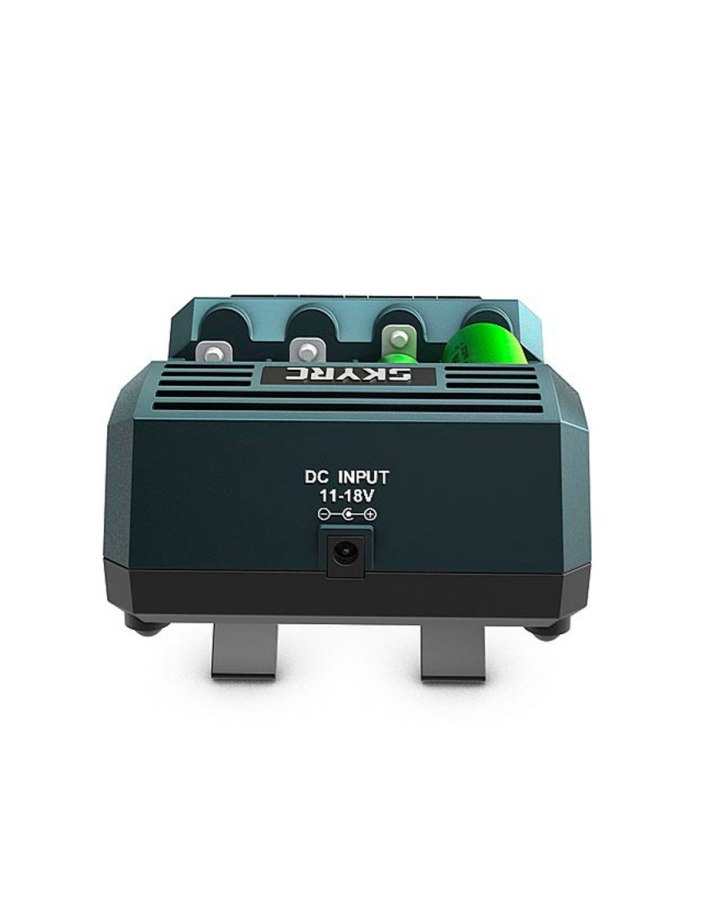

- Input Power: DC 11-18V/4A
- Charge Current Range: 0.05-3.00A
- Discharge Current Range: 0.05-2.00A
- Max. Charge Power: 50W
- Max. Discharge Power: 15W
- Battery Chemistry Type: NiMH, NiCd, NiZn, Eneloop,Lithium-Ion, LiIo4.35, LiFePO4
- Battery Capacity: 100-50000 mAh
- Operating Temperature: 0-40℃
- USB Power Output: DC 5V/2.1A
- Dimensions (LxWxH): 200×124×69mm
- Weight (Without DC Adaptor): 600gr
